TPC-SD2241-B7F8-DW-S2 4MP Hybrid Thermal PT Camera

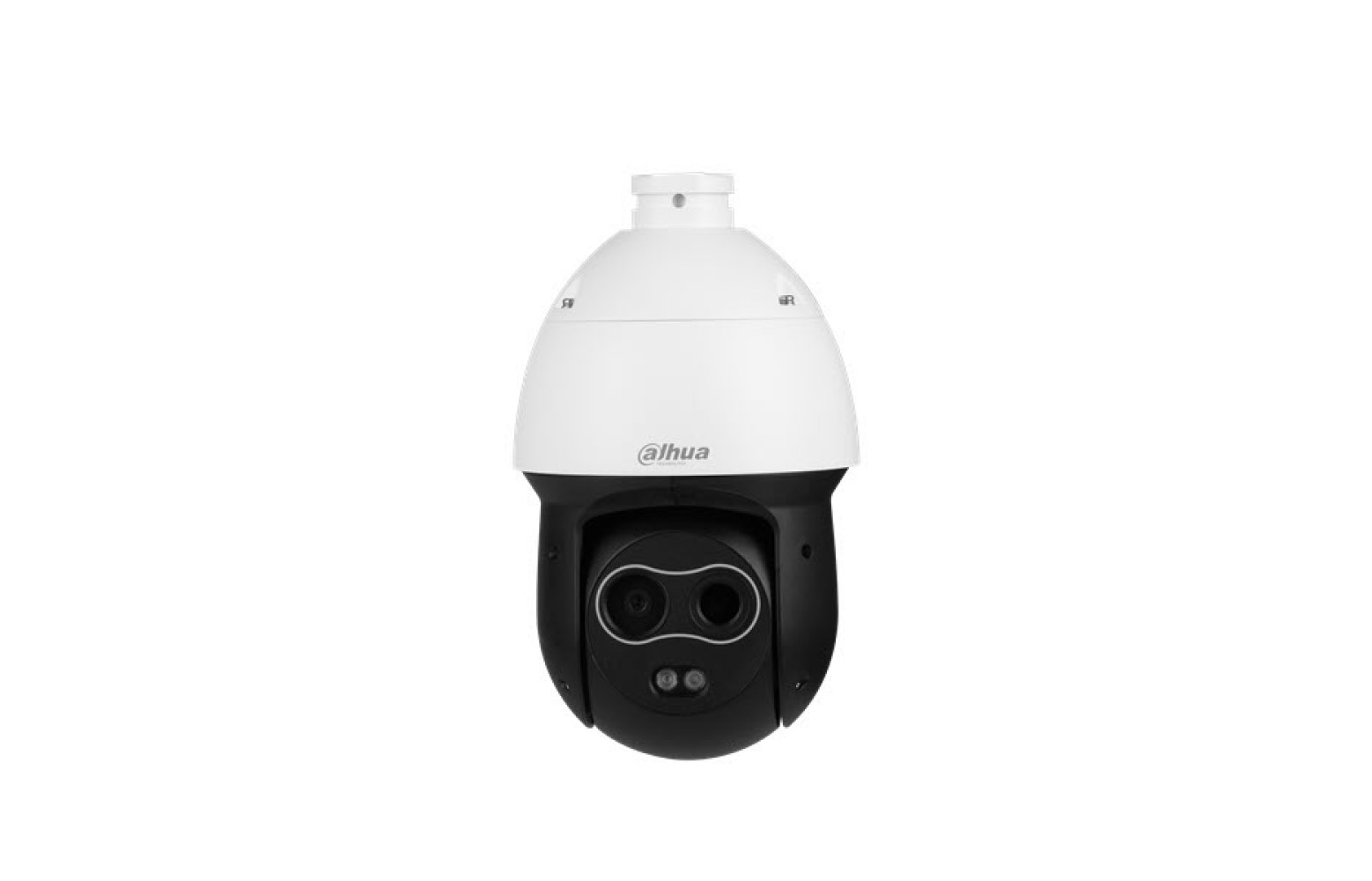

Dahua TPC-SD2241-B7F8-DW-S2 Hybrid Thermal PT Camera

The Dahua TPC-SD2241-B7F8-DW-S2 is a professional hybrid thermal PT camera that combines a thermal image with a 4MP visible channel. This allows the camera to detect temperature differences while also providing a detailed optical image for verification.

The thermal channel features a 256 × 192 detector and a fixed 7 mm lens with a horizontal field of view of approximately 24 degrees. The visible channel uses a 4MP CMOS sensor in combination with an 8 mm lens.

Thanks to the combination of thermal and visible imagery, this camera is ideal for perimeter security, industrial settings, construction sites, solar parks, and other locations where reliable detection under varying lighting conditions is required.

The camera supports intelligent features such as line crossing, intrusion detection, and classification of people and vehicles. In addition, the model offers features including heat detection, smoke detection, and detection of people using cell phones.

The integrated PT function allows the camera image to be remotely positioned. Dual-image fusion enables the combination of thermal and optical information, allowing events to be assessed more quickly.

Key Features

• Hybrid thermal PT camera

• Thermal resolution 256 × 192

• 7 mm thermal lens

• Horizontal thermal field of view approximately 24°

• 4MP visible camera channel

• 8 mm optical lens

• Thermal and visible images in a single camera

• Dual-image fusion

• Person and vehicle classification

• Line-crossing and intrusion detection

• Heat detection

• Smoke and phone detection

• Built-in white light and audio alarm

• PT control

• IP66 housing

• Suitable for professional perimeter and site security
