NVR1016H 16-channel Network Video Recorder

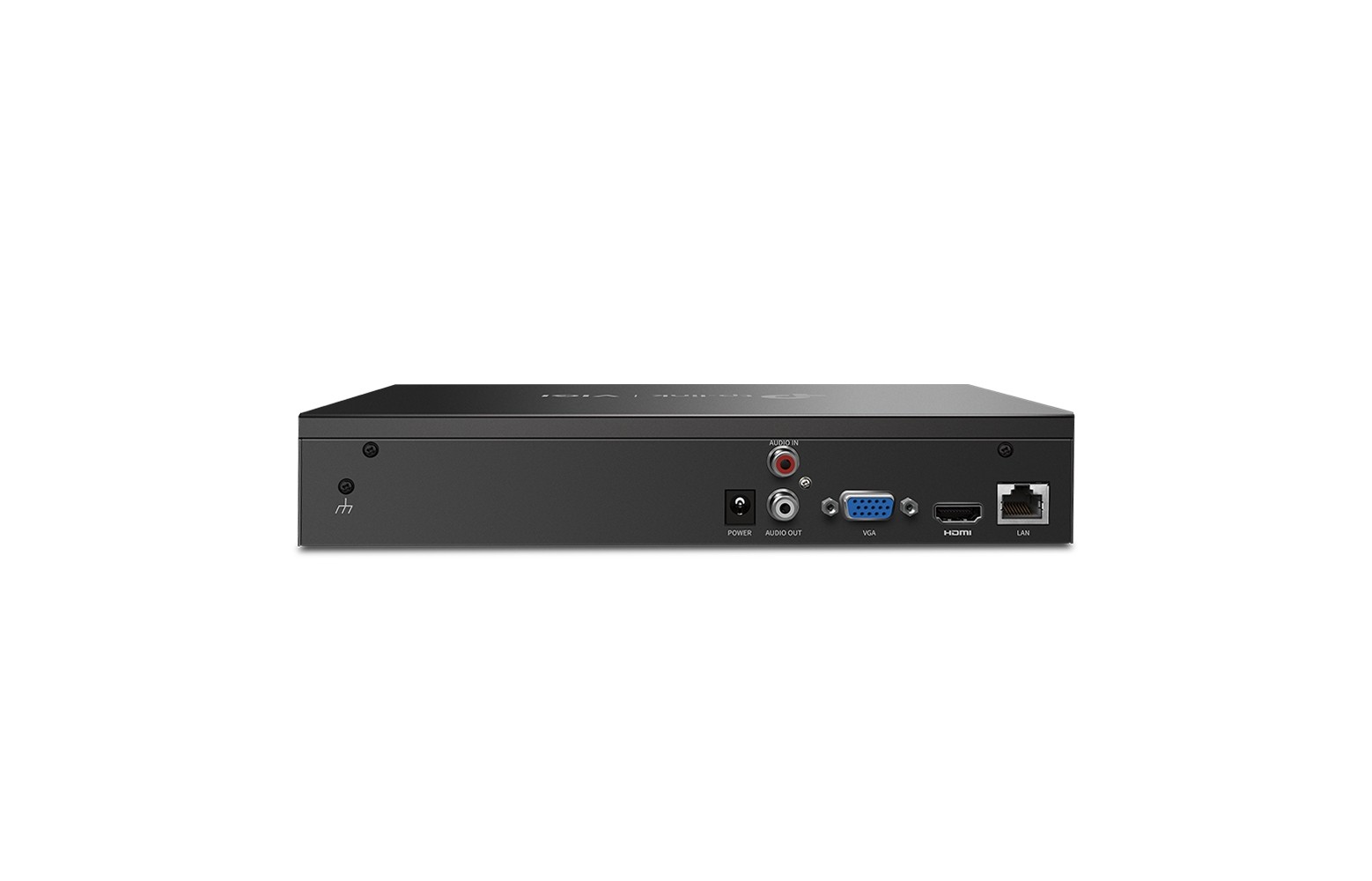

VIGI NVR1016H – 16-channel network video recorder with 4K HDMI output

The VIGI NVR1016H is a 16-channel network video recorder designed for professional IP camera surveillance in environments such as SMEs, retail, logistics, healthcare, and offices. With support for 16-channel live video and a 4K HDMI video output, you always have a clear overview on one or more monitors.

The NVR offers a decoding capacity of up to 8 channels @ 2 MP (25 fps) or 4 channels @ 4 MP (25 fps), enabling smooth playback even at higher resolutions. Thanks to the 16-channel synchronized display, you can easily review multiple camera feeds simultaneously, ideal for incident analysis or monitoring larger locations.

With an incoming bandwidth of 80 Mbps and an outgoing bandwidth of 60 Mbps, the NVR1016H is suitable for multiple HD cameras simultaneously. The H.265+ compression technology used significantly reduces the required storage and bandwidth without compromising image quality. A single hard drive with a total capacity of 1 to 16 TB can be connected via the SATA interface, enabling long-term recording and high frame rates.

The VIGI NVR1016H supports simultaneous HDMI and VGA output, allowing you to seamlessly integrate it into both modern and existing monitor setups. With remote monitoring via app and browser, you can access live footage and recordings from anywhere, including basic management of your camera system.

Key Features

• 16-channel network video recorder for IP camera surveillance

• 16-channel live view and 4K HDMI video output

• Decoding capability:

  • Up to 8 channels @ 2 MP (25 fps)

  • Up to 4 channels @ 4 MP (25 fps)

• Synchronized 16-channel playback for efficient review

• 80 Mbps incoming and 60 Mbps outgoing bandwidth

• 1× SATA interface with support for 1 to 16 TB storage capacity*

• H.265+ video compression for efficient storage and bandwidth savings

• Simultaneous HDMI and VGA output for flexible monitor setups

• Remote monitoring via the VIGI platform, app, and/or web interface
