NVR1104H-4P - 4-channel PoE+

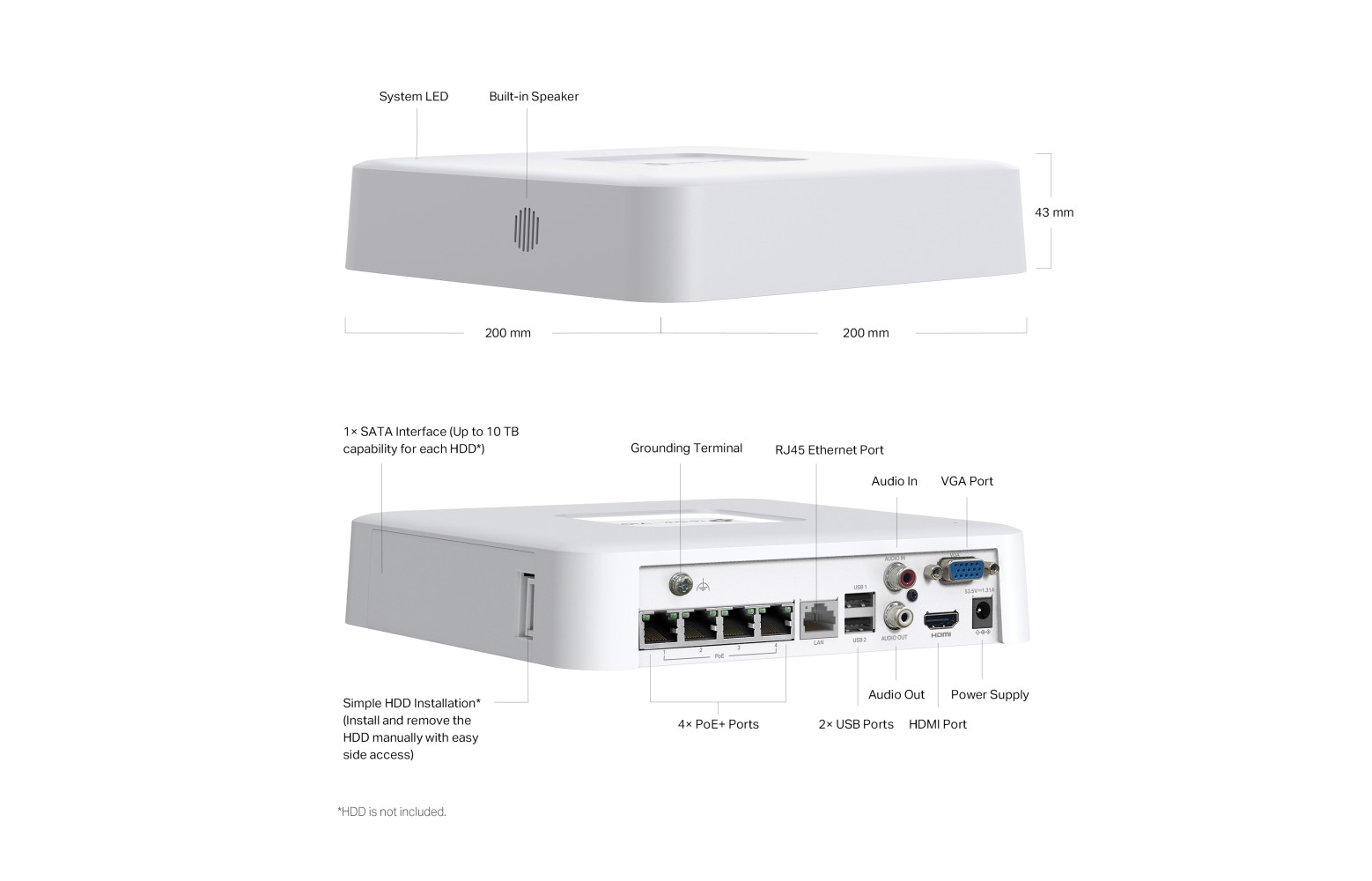

VIGI NVR1104H-4P – 4-channel PoE+ network video recorder with 4K HDMI
The VIGI NVR1104H-4P is a compact 4-channel PoE+ network video recorder specifically designed for small to medium-sized security installations, such as retail stores, offices, hospitality venues, and medical practices. Thanks to the integrated 4 PoE+ ports with a total PoE budget of 53 W, you can connect IP cameras directly to the recorder without an additional PoE switch or separate power supplies. This ensures a quick, organized, and cost-efficient installation.
The recorder supports 4-channel live video and features a 4K HDMI video output, allowing you to view live footage in crystal-clear detail and review recordings on a monitor or TV. With a decoding capacity of up to 2 channels @ 8 MP (25 fps) or 4 channels @ 4 MP (25 fps), the NVR1104H-4P is more than sufficient for high-quality surveillance at locations with a limited number of cameras.
With an incoming bandwidth of 80 Mbps and an outgoing bandwidth of 60 Mbps, the recorder can process multiple HD streams simultaneously. The built-in H.265+ compression technology minimizes storage and bandwidth usage, allowing you to record for longer on the same disk capacity. Via the SATA interface, a single hard drive with a capacity of up to 10 TB can be installed, ideal for longer retention periods.
The VIGI NVR1104H-4P supports simultaneous HDMI and VGA output, making it compatible with both modern and older monitors. Remote monitoring via the VIGI app and web interface gives you access to live video and recordings from anywhere, including simple operation and basic management.
Key Features
4-channel PoE+ network video recorder for IP camera systems
4-channel live view with 4K HDMI video output
4 × 10/100 Mbps PoE+ ports with 53 W PoE budget (total)
Decoding capability:
Up to 2 channels @ 8 MP (25 fps)
Up to 4 channels @ 4 MP (25 fps)
Synchronized 4-channel playback for efficient review
80 Mbps incoming and 60 Mbps outgoing bandwidth
1 × SATA interface with support for up to 10 TB of storage capacity*
H.265+ compression technology for efficient storage and bandwidth savings
Simultaneous HDMI and VGA output for flexible monitor connections
Remote monitoring via app and web interface
* Actual storage capacity and retention period depend on resolution, frame rate, compression, and recording settings.
