NVR2016H-16MP 16-Channel PoE+ Recorder

VIGI NVR2016H-16MP – 16-Channel PoE+ Network Video Recorder

The VIGI NVR2016H-16MP is a powerful 16-channel PoE+ network video recorder, designed for medium to large camera installations where high image quality, stability, and centralized power supply are essential. Thanks to 16 integrated PoE+ ports with a total PoE budget of 140 W, IP cameras can be directly connected and powered without additional switches or power supplies.

This recorder supports 16-channel live viewing and features a 4K HDMI video output, ensuring camera images are displayed with razor-sharp clarity on professional monitors. The high bandwidth of 320 Mbps (in/out) makes the system suitable for high resolutions and multiple simultaneous streams.

Powerful performance and efficient storage

The NVR2016H-16MP offers extensive decoding capabilities, supporting up to 10 channels @ 3MP (25 fps) or 16 channels @ 1080P (25 fps), including synchronous playback of all 16 channels. Thanks to H.265+ compression technology, storage capacity is optimally utilized without compromising image quality.

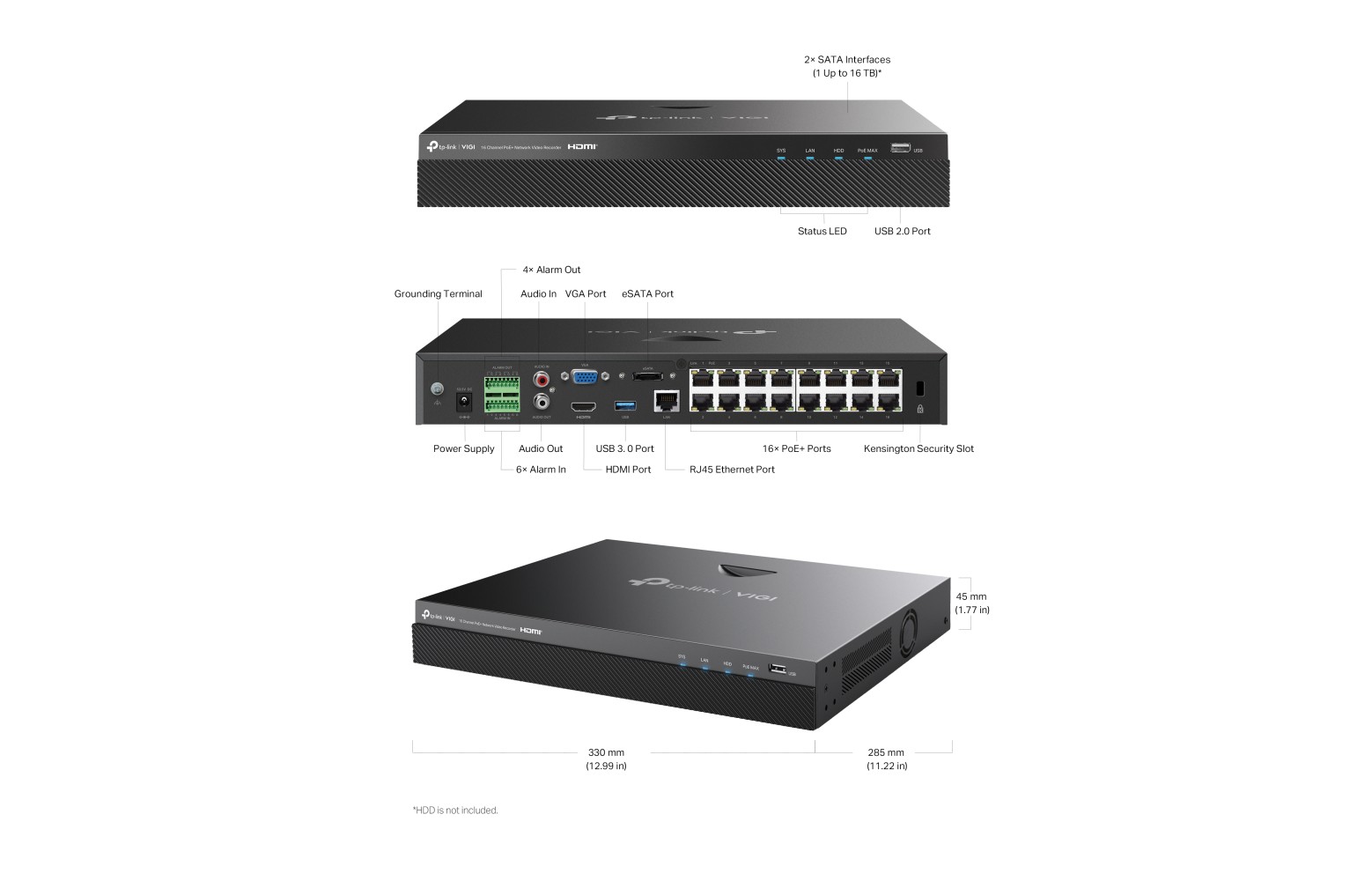

With 2 SATA interfaces, the recorder supports hard drives up to 16 TB, enabling long-term recording even at high resolutions.

Flexible video outputs and alarm functionality

The recorder is equipped with independent or simultaneous HDMI and VGA outputs, offering flexibility for local monitoring. Additionally, the system features 6 alarm inputs and 4 alarm outputs, suitable for integration with external sensors, notification systems, and automation.

Key features

• 16-channel PoE+ NVR

• 16 × 10/100 Mbps PoE+ ports

• PoE budget: 140 W

• 4K HDMI output + VGA

• 320 Mbps incoming and outgoing bandwidth

• H.265+ video compression

• Up to 2 SATA HDDs, max. 16 TB

• Alarm I/O: 6 in / 4 out

• Suitable for professional CCTV installations
