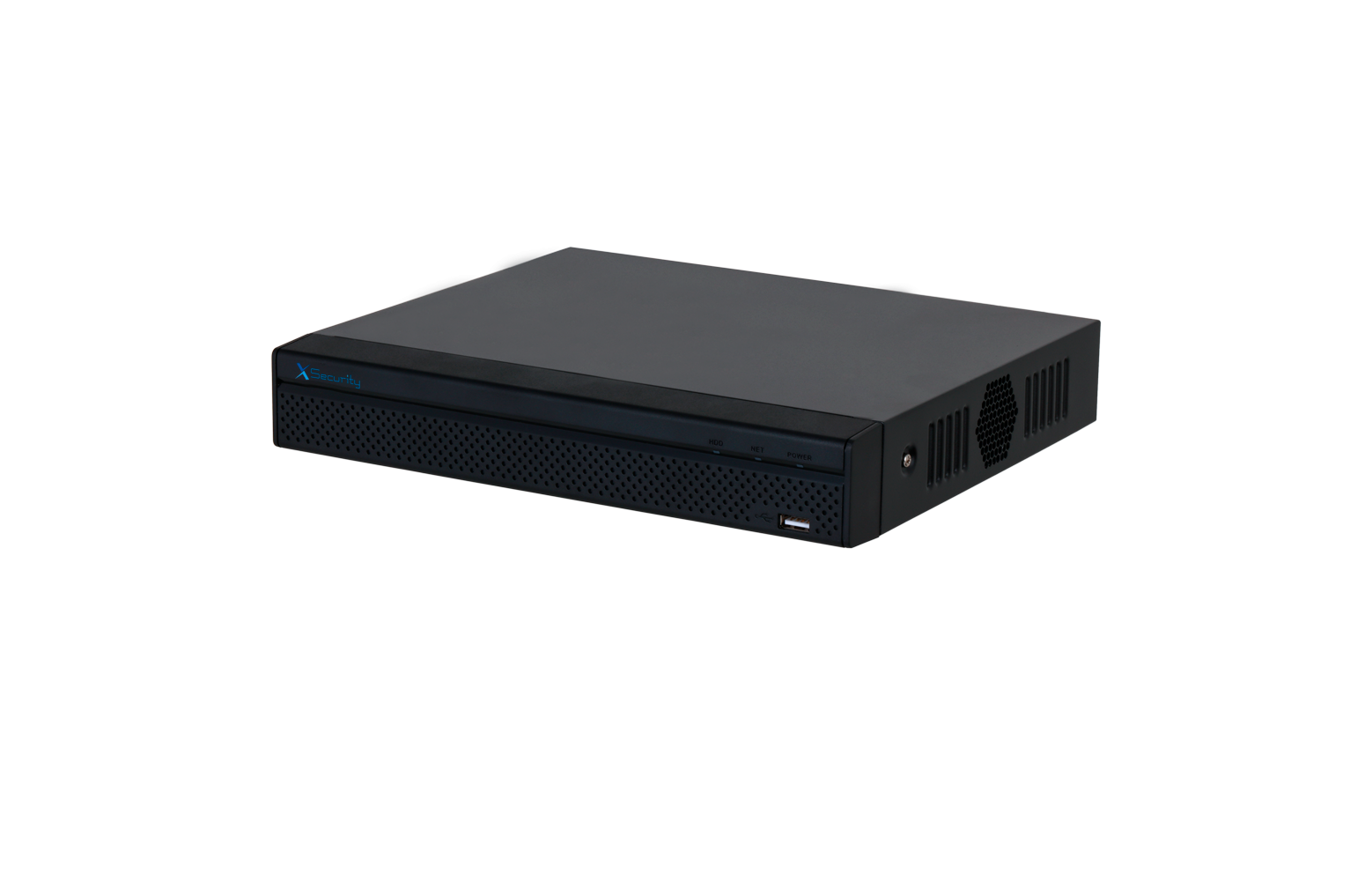

XS-NVR2104-4P-SMD X-Security

Professional 4-channel AI IP recorder with integrated PoE

The XS-NVR2104-4P-SMD from X-Security is a compact and efficient AI IP recorder for small to medium-sized CCTV installations. This NVR has 4 IP channels and 4 integrated PoE ports, allowing cameras to be powered and managed directly via the recorder. This simplifies installation, reduces cabling, and minimizes the risk of failure.

With support for up to 12 megapixel recording resolution and a total bandwidth of 80 Mbps, this system is suitable for high-resolution IP cameras in retail, office environments, warehouses, and residential projects.

Key features

• 4 CH Video IP

• 4 CH PoE (Power over Ethernet)

• Maximum recording resolution: 12 Mpx

• Total bandwidth: 80 Mbps

• HDMI and VGA output

• Support for 1 internal hard drive

Efficient installation with integrated PoE

Thanks to the 4 built-in PoE ports, no external PoE switch is required. This makes the XS-NVR2104-4P-SMD particularly suitable for installers looking for a compact, cost-effective solution for projects with up to four cameras.

High resolution and stable performance

Support for up to 12MP recording guarantees sharp image capture with compatible cameras. With a bandwidth of 80 Mbps, the recorder offers sufficient capacity for simultaneous recording and playback without any loss of performance.

The HDMI and VGA outputs enable direct connection to monitors for local live playback and configuration.

Applications

• Retail and stores

• Small office installations

• Warehouses and logistics areas

• Residential and SME projects

• Stand-alone 4-camera installations
