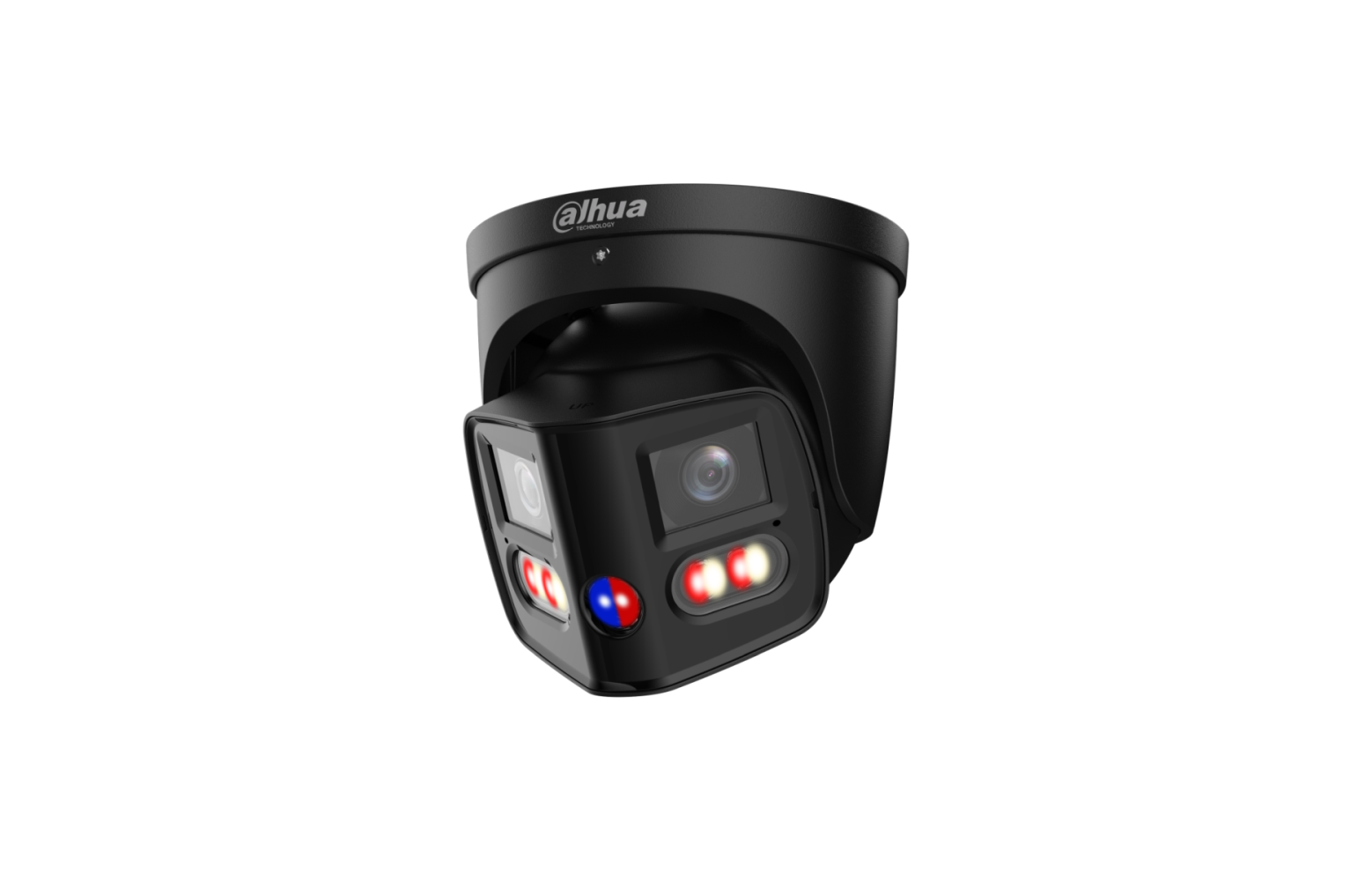

PDW31259-A180-AS-PV Zwart 12MP TiOC 180° Dual Lens Xinghan
| Camera | |
|---|---|
| Beeldsensoren | 2 × 1/2.7" CMOS |
| Type camera | Optische Dual-Lens Panoramacamera |
| Resolutie | 8 Megapixel |
| Minimale verlichting (kleur) | 0.003 Lux |
| Minimale verlichting (IR/Witlicht) | 0 Lux |
| Verlichting | IR + Witte LED |
| Bereik verlichting | IR tot 30 meter, Witlicht tot 30 meter |
| Dag/Nacht omschakeling | Automatisch of handmatig |
| Aantal LED's | 4 |
| Sluitertijd | 1/3 s tot 1/100.000 s |
| Ruisonderdrukking | 3D DNR |
| Lens | |
| Type lens | Vaste lens |
| Brandpuntsafstand | 2.8 mm |
| Iris | Vaste Iris |
| Maximale diafragmaopening | F1.4 |
| Horizontale kijkhoek | 180° |
| Verticale kijkhoek | 72° |
| Focus | Vast |
| Video | |
| Videocompressie | H.265, H.264, H.264B, H.264H, MJPEG |
| Aantal videostreams | 3 |
| Hoofdstream | 4320 × 1944 @ 20 fps |
| Tweede stream | 1200 × 530 @ 20 fps |
| Derde stream | 1920 × 860 @ 20 fps |
| Bitrate | 6 kbps - 16.384 kbps (H.264/H.265) |
| Dag/Nacht modus | Auto, Kleur, Zwart/Wit |
| Wide Dynamic Range | 120 dB WDR |
| Lichtcompensatie | BLC, HLC, SSA |
| Bewegingsdetectie | Ja |
| Smart IR | Ja |
| Smart LED | Automatisch / Handmatig |
| Defog | Nee |
| Privacy Masking | Ja |
| AI Functies | |
| AI-technologie | Xinghan AI |
| AcuPick | Ja |
| AI Perimeter Protection | Ja |
| AI Motion Detection | Ja |
| EPTZ | Ja |
| Audio | |
| Ingebouwde microfoon | Ja |
| Ingebouwde luidspreker | Ja |
| Audio-ingang | 1 |
| Audio-uitgang | 1 |
| Audiocompressie | G.711A, G.711MU, G.723, G.726, PCM |
| Netwerk | |
| Netwerkaansluiting | RJ-45 Gigabit Ethernet (10/100/1000 Mbps) |
| MicroSD-kaartslot | Ja |
| Maximale opslagcapaciteit | 512 GB MicroSD |
| Interfaces | |
| Alarm-ingang | 1 |
| Alarm-uitgang | 1 |
| Voeding | |
| Voeding | 12 VDC, PoE+ (IEEE 802.3at) of E-PoE |
| Voeding inbegrepen | Nee |
| Maximaal stroomverbruik | 14.8 W (PoE) / 12.2 W (12 VDC) |
| Voedingsuitgang | 12 VDC / PoE |
| Constructie | |
| Materiaal | Kunststof / Metaal |
| Beschermingsklasse | IP67 |
| Bedrijfstemperatuur | -40°C tot +60°C |
| Afmetingen | Ø122 × 135.2 mm |
| Gewicht | 0.99 kg |
| DORI | |
| Detecteren | 50.6 meter |
| Observeren | 20.2 meter |
| Herkennen | 10.1 meter |
| Identificeren | 5.1 meter |
3 jaar Dahua garantie.
Slijtage gevoelige onderdelen 1 jaar garantie.
Brutoprijs product < €800,- is omruilgarantie
Brutoprijs product > €800,- is reparatiegarantie (na reparatie door Dahua wordt het product aan u geretourneerd)
Uitzondering: Wizmind camera's geproduceerd vanaf 2023 krijgen na de 3 jaar Dahua garantie nog 2 jaar extra reparatiegarantie (na reparatie door Dahua wordt het product aan u geretourneerd)
Defecten ontstaan tijdens installatie, brand, bliksem, onjuiste elektrische belasting, slijtage of misbruik zijn voorbeelden van defecten die niet onder de 3 jaar garantie door de leverancier worden gedekt.
- voorraad: Op voorraad
- Merk: Dahua
- EAN: 6937552430778
