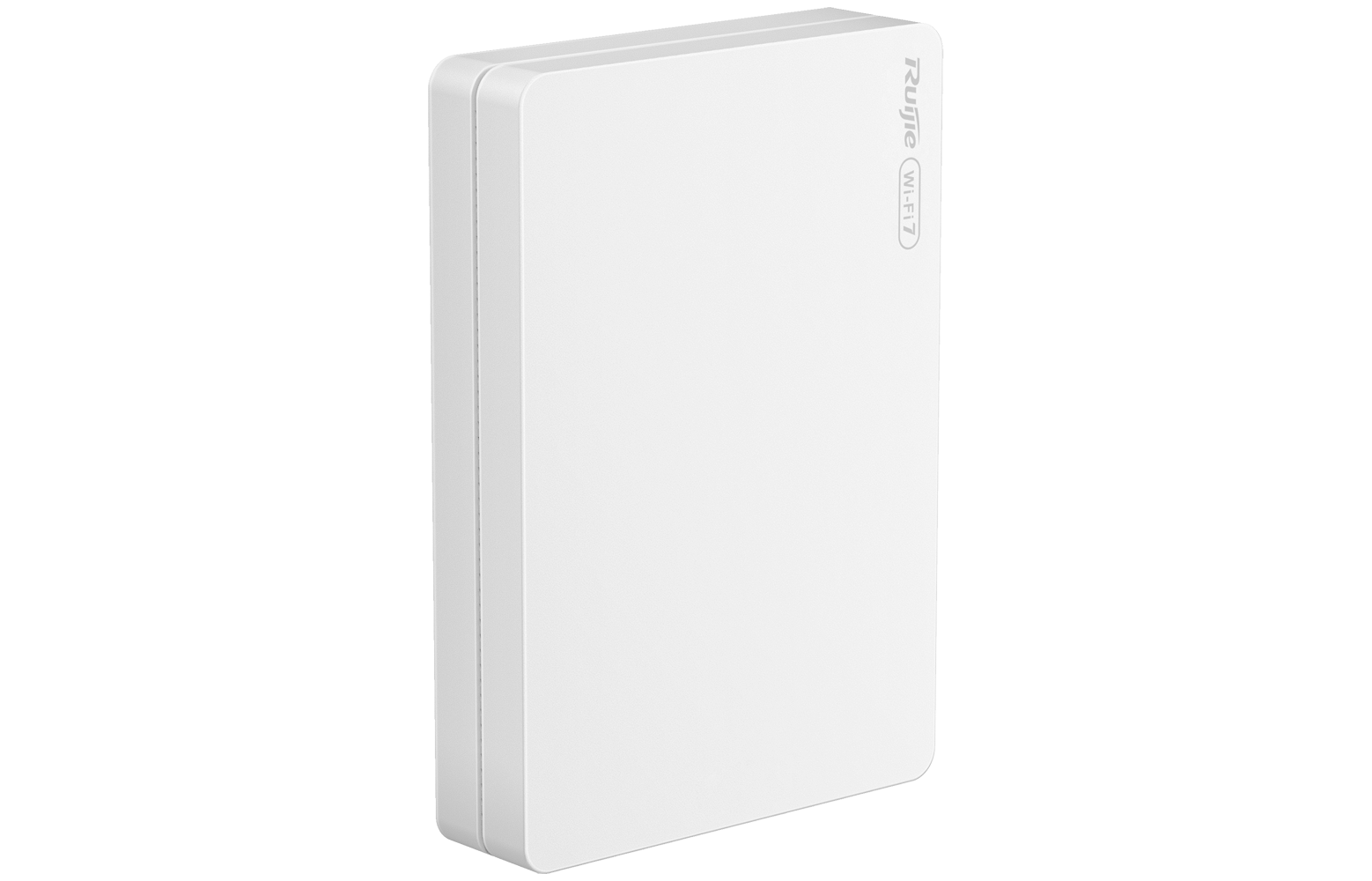

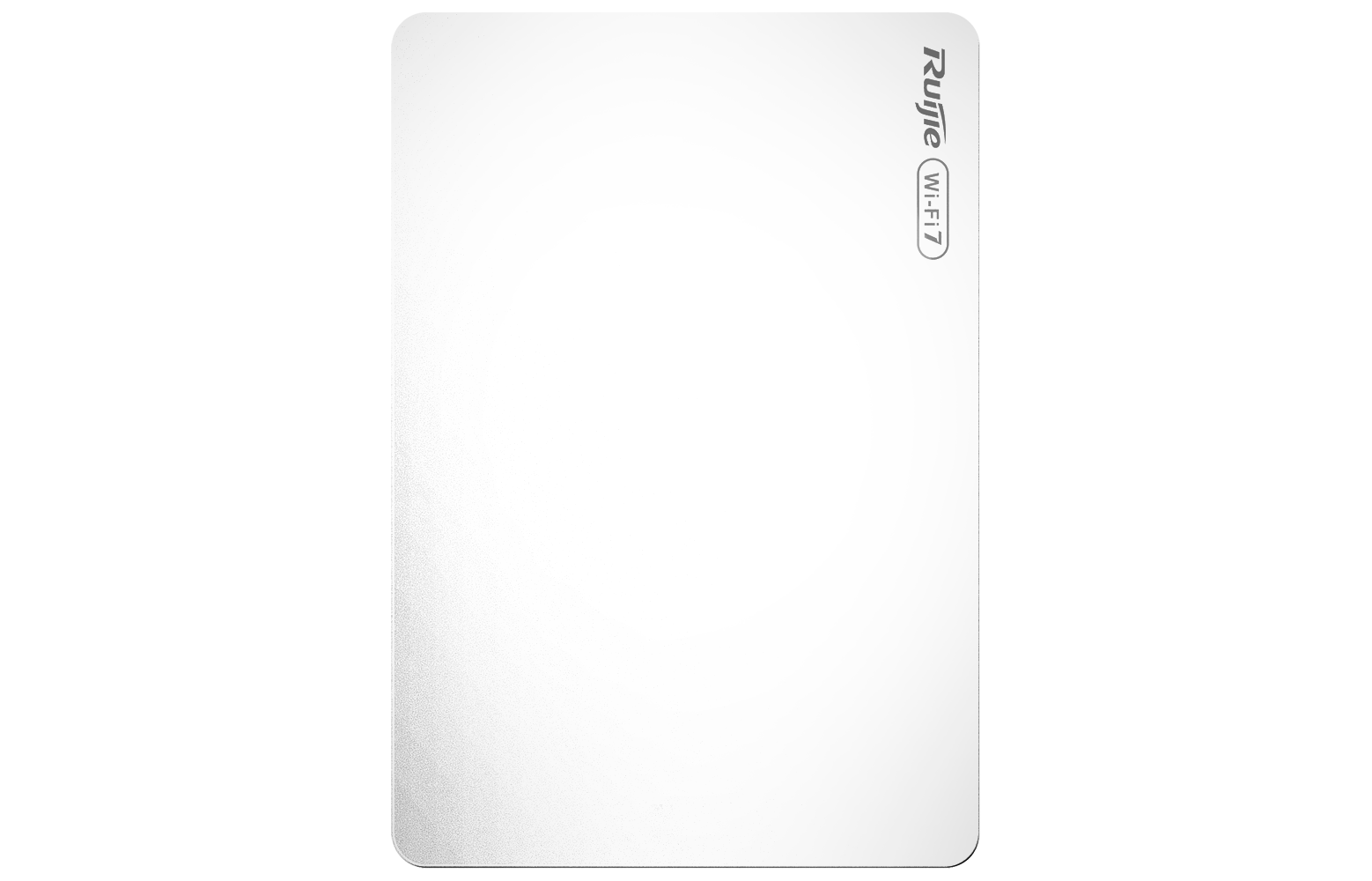

RG-RAP72-WALL Wi-Fi 7 Wall Access Point met 3600 Mbps en Reyee Cloud Beheer
| Merk | Reyee |
|---|---|
| Draadloze standaard | Wi-Fi 7 (IEEE 802.11be) |
| Frequentiebanden | 2,4 GHz en 5 GHz |
| Wi-Fi prestaties |
Tot 3600 Mbps totaal Tot 688 Mbps op 2,4 GHz Tot 2882 Mbps op 5 GHz |
| Geïntegreerde antennes |
2,4 GHz: 2×2 MIMO, 2,84 dBi 5 GHz: 3×3 MIMO, 4,56 dBi |
| Maximaal aantal SSID's | 8 |
| Wi-Fi 7 Technologieën | |
| MRU | Multi-Resource Unit |
| MLO | Multi-Link Operation |
| WIO | Wi-Fi Intelligent Optimization |
| 4K-QAM | Modulatie van de nieuwste generatie voor hogere datasnelheden |
| Bedrijfsmodi | |
| Ondersteunde modi |
Draadloos toegangspunt Routermodus met basisfuncties Compatibel met Reyee AP Mesh |
| Routeringsfuncties | |
| WAN-configuratie | Statisch IP-adres, DHCP, PPPoE |
| NAT | Ondersteund |
| Beveiliging | |
| Draadloze clientisolatie | Ja |
| Blokkeer-/toegangslijst | Ja |
| Authenticatie |
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, OWE, WPA3-SAE, WPA2-PSK/WPA3-SAE |
| Interfaces | |

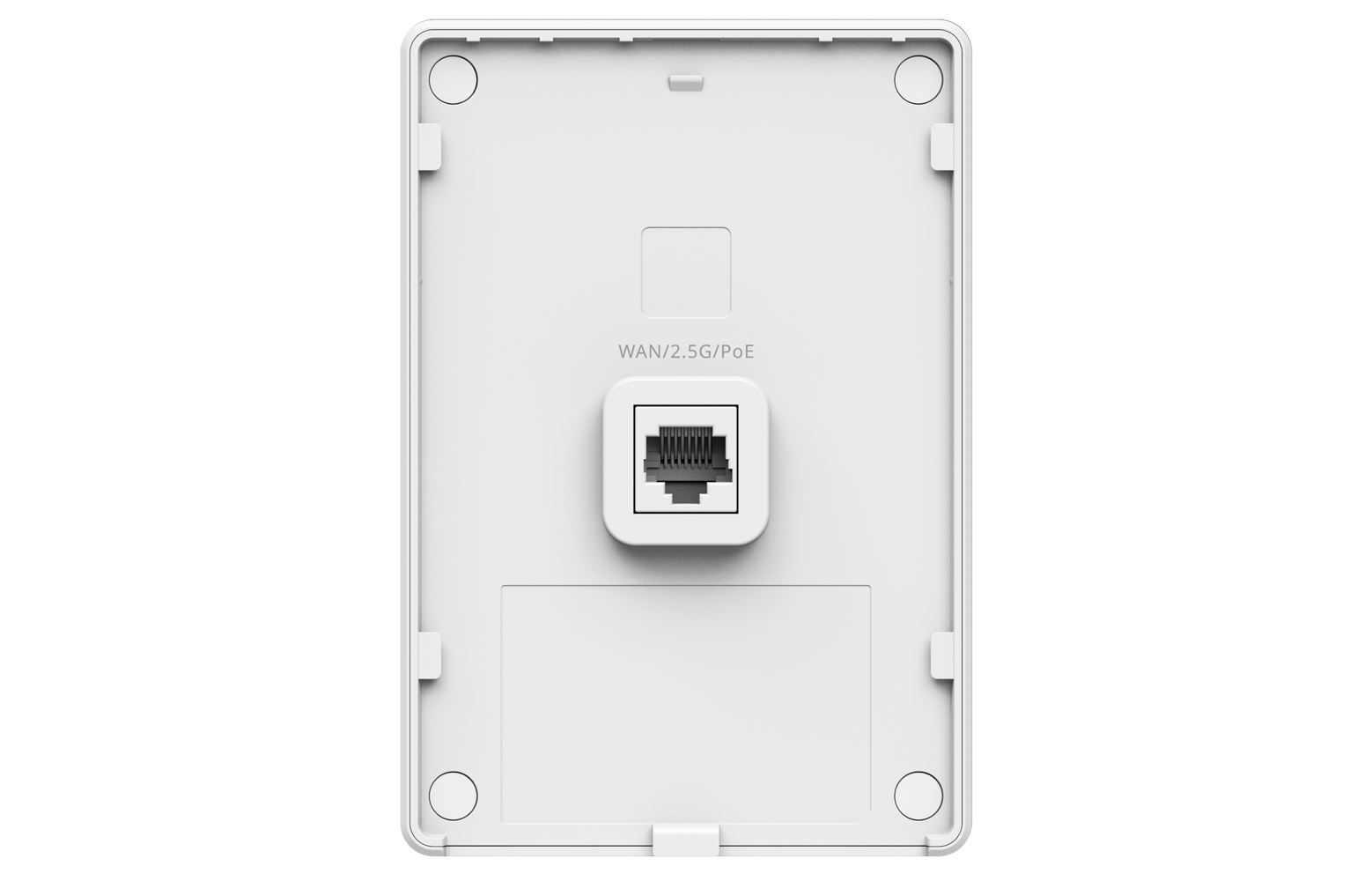

| Uplink-poort | 1 × RJ45 2,5 Gbps (100/1000/2500 Base-T) |

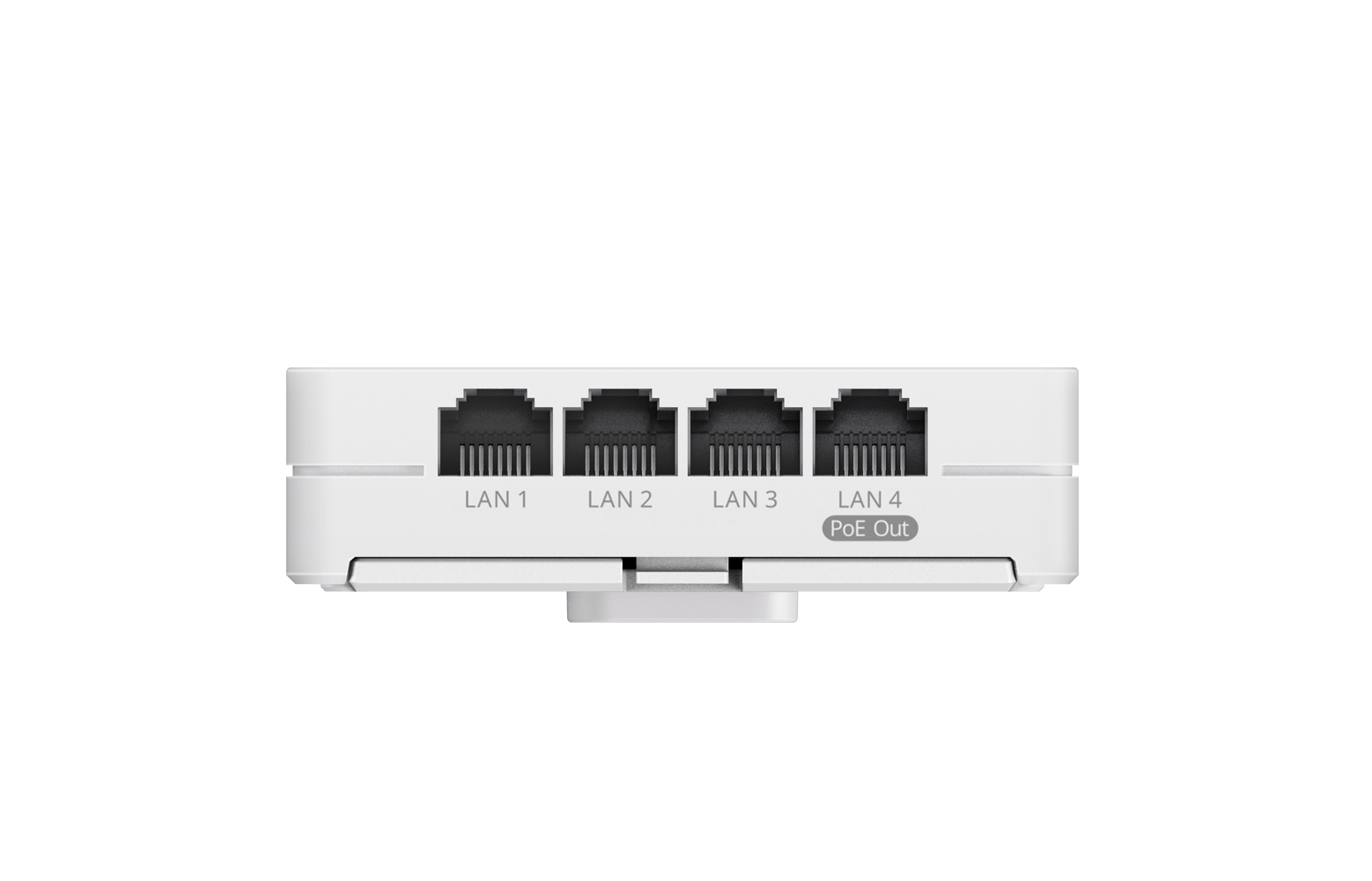

| LAN-poorten | 4 × RJ45 Gigabit Ethernet (10/100/1000 Base-T) |
| Netwerkfunctionaliteiten | |
| VLAN | 802.1Q VLAN, poortgebaseerde VLAN's |
| Roaming | 802.11k/v/r, L2/L3 Roaming, AI Roaming |
| Authenticatie | 802.1X |
| Mesh | Compatibel met Reyee AP Mesh |
| Beheer | |
| Configuratie | Webinterface en Ruijie Cloud |
| Diagnostiek | One-click foutanalyse, pakketanalyse |
| Monitoring | SNMP v1, v2c en v3 |
| Alarmfuncties | Actieve melding bij DHCP-serverconflicten |
| Netwerktechnologieën | |
| RLDP | Ondersteund |
| DHCP Snooping | Ondersteund |
| Wireless QoS | Wireless Flow Control (WQoS) |
| Load Balancing | Taakverdeling tussen access points |
| SSID/VLAN Mapping | Dezelfde SSID voor verschillende VLAN's |
| Voeding | |
| PoE | IEEE 802.3af/at (PoE Out alleen bij voeding via 802.3at) |
| Omgevingsspecificaties | |
| Bedrijfstemperatuur | 0 °C tot 40 °C |
| Fysieke eigenschappen | |
| Afmetingen | 129 × 86 × 24 mm (zonder montagebeugel) |
| Gewicht | 0,27 kg (exclusief montageset) |
