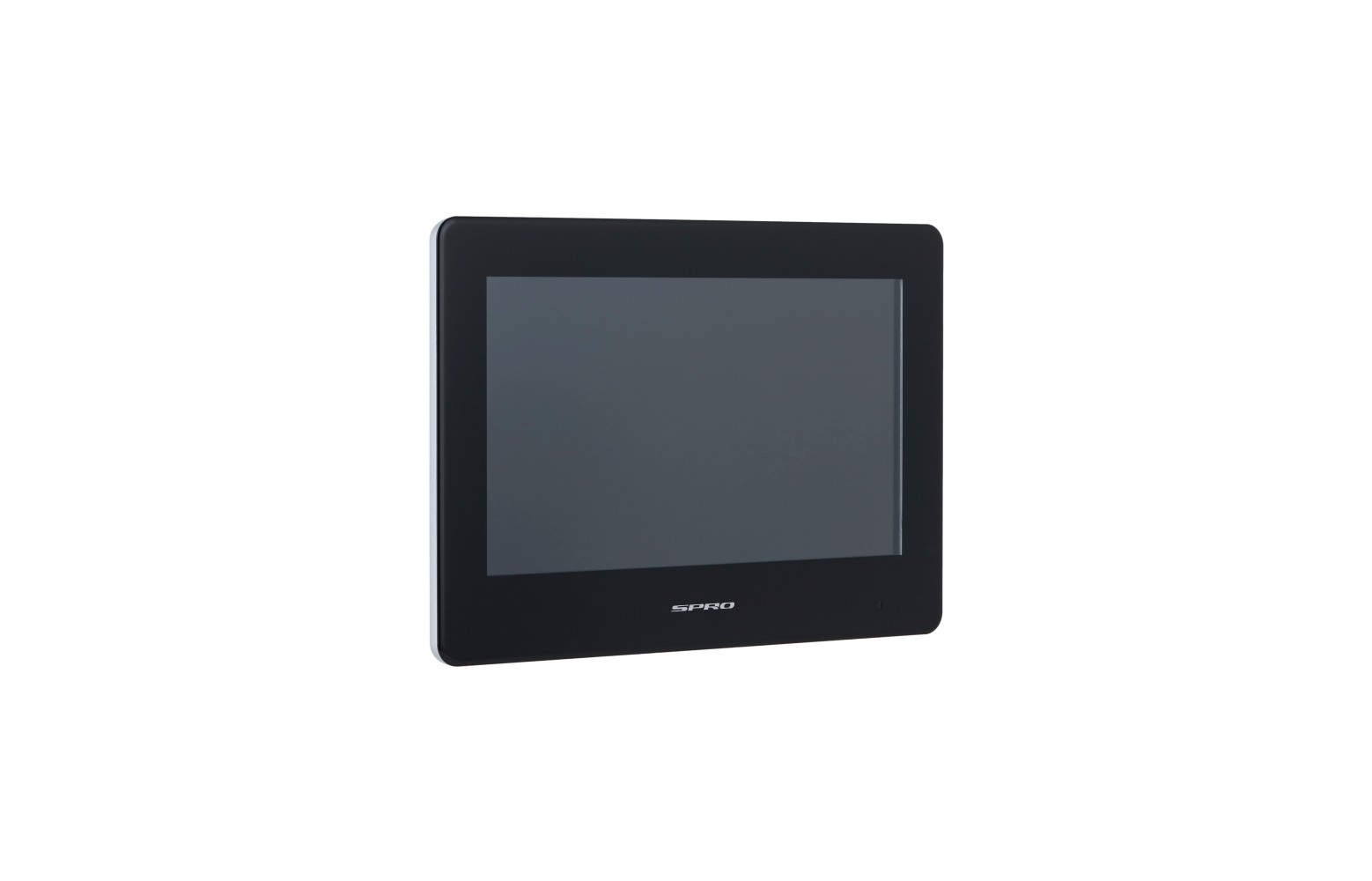

VI-MTR04-B Android
| Specifications: | |
|---|---|
| Model Number | VI-MTR04-B |
| Main Processor | Embedded processor |
| Operating System | Android 8.1 |
| Network Protocol | IPv4, TCP, SIP, UDP, RTSP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display | 7 inch TFT LCD |
| Screen Resolution | 1024x600 |
| Video Compression | H.264 |
| Audio Compression | PCM |
| Audio Input | 1 omnidirectional microphone |
| Audio Output | Built-in 1W speaker |
| Audio Mode | 2-way Audio |
| Audio Enhancement | Echo suppression / DNR |
| Audio Bit Rate | 16kHz; 16 Bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Text announcements released by the management centre can be viewed. |
| Elevator Control | You can control the elevator through the indoor monitor |
| Leave Videos or Text Messages | Yes (SD card is needed(Max. 256GB)) |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Number of Extensions | Villa: 4 Apartment: 9 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Wireless Security Encryption | 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Performance | |
| Casing | PC + ABS |
| Port | |
| RS-485 | 1 |
| Alarm Input | 8 |
| Alarm Output | 1 |
| Power Output | 1 12V/100mA |
| Door Bell | Yes (use any alarm input port) |
| Network | 1 10M/100M Ethernet |
| Alarm | |
| SOS | Yes |
| General | |
| Appearance Colour | Black |
| Power Supply | 12V DC 1A POE(802.3AF) |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Accessory | Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided |
| Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) |
| Operating Humidity | 10%–95% RH (non-condensing) |
| Operating Altitude | Beneath 3,000 m (9,842.52 ft) |
| Power Consumption | ≤1.5W (standby), ≤7W (working) |
| Net Weight | 385 g (0.85 lb) |
| Gross Weight | 490 g (1.08 lb)) |
